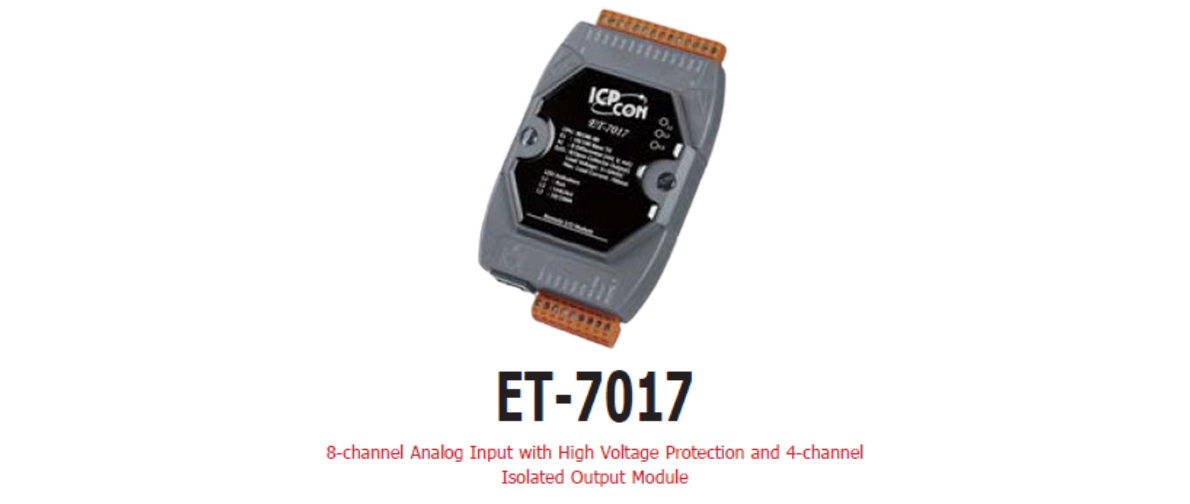

ET-7017
The ET-7017, a web-based Ethernet I/O module, features a built-in web server, which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Besides, with the web HMI function, no more programming or HTML skills are needed; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7017 offers easy and safe access for users from anytime and anywhere! In addition, ET-7017 also supports Modbus/TCP protocol that makes seamless integration to SCADA software.
The ET-7017 is a 16-bit, 8-channel differential analog inputs and 4-channel digital ouputs module that provides programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1V, +/-5V, +/-10V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA) and digital output can be set alarm output. Each analog channel is allowed to configure an individual range and has 240 Vrms high over voltage protection. Jumper selectable for voltage or current input.
Analog Input & Digital Output - Features
Built-in Web Server- Communication Security
- Modbus/TCP Protocol
- 2-way Isolation/ESD Protection
- Built-in Dual Watchdog
- 10/100 Base-TX Ethernet
- I/O Pair Connection
- AI Type: 8 Differential (mV, V, mA)
- DO Type: 4 Open Collector Output
- Over Voltage Protection is up to 240 Vrms
- Jumper Setting for Current or Voltage Input
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis, Testing Equipment.
