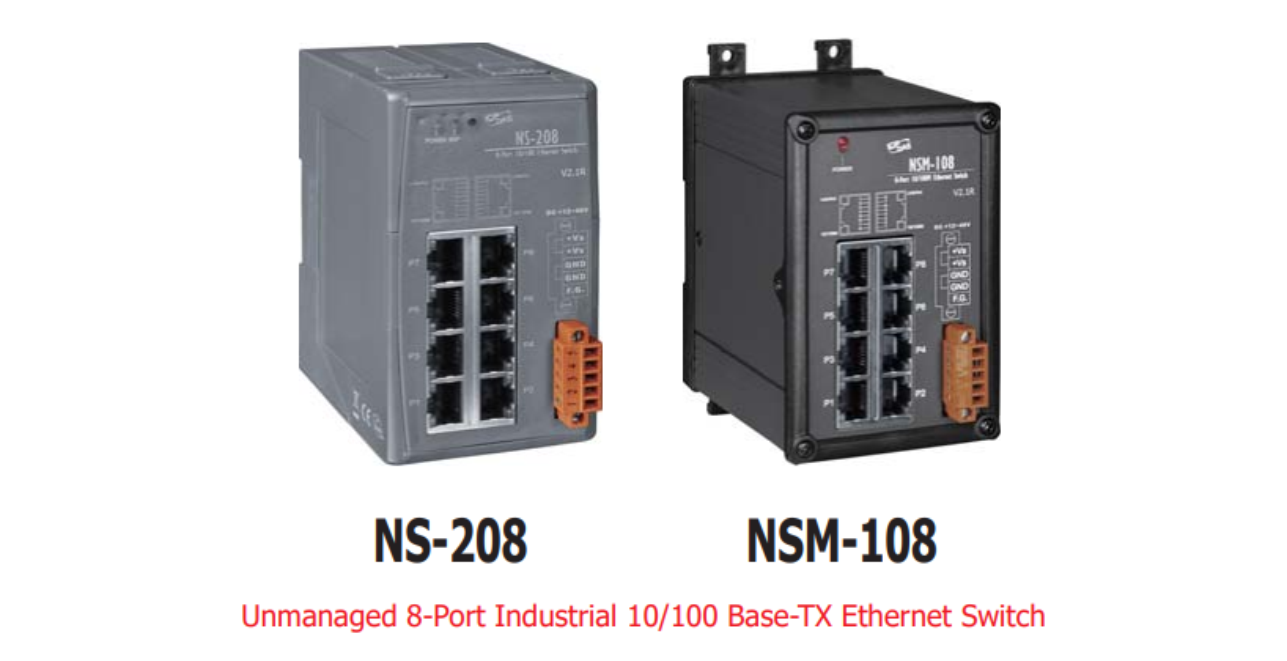

NS-208, NSM-108
The NS-208/NSM-108 has 8 Ethernet ports that support 10/100 Base-TX, with a 10/100M auto negotiation feature and auto MDI/MDI-X function.
All Ethernet ports have memory buff ers that support the store-and-forward mechanism, which assures that data can be transmitted properly. The NS-208/NSM-108 supports advanced network standards to optimize network performance, reduce maintenance costs, and secure network safety.
The flow control mechanism is also negotiated. There is link/data rate LEDs for each port to aid troubleshooting. Port connectors are shielded RJ-45.
Features
Automatic MDI/MDI-X crossover for plug-and-play- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure fl ow control
- Supports +12 VDC ~ +48 VDC power input
- Each port supports both 10/100 Mbps speed auto negotiati
